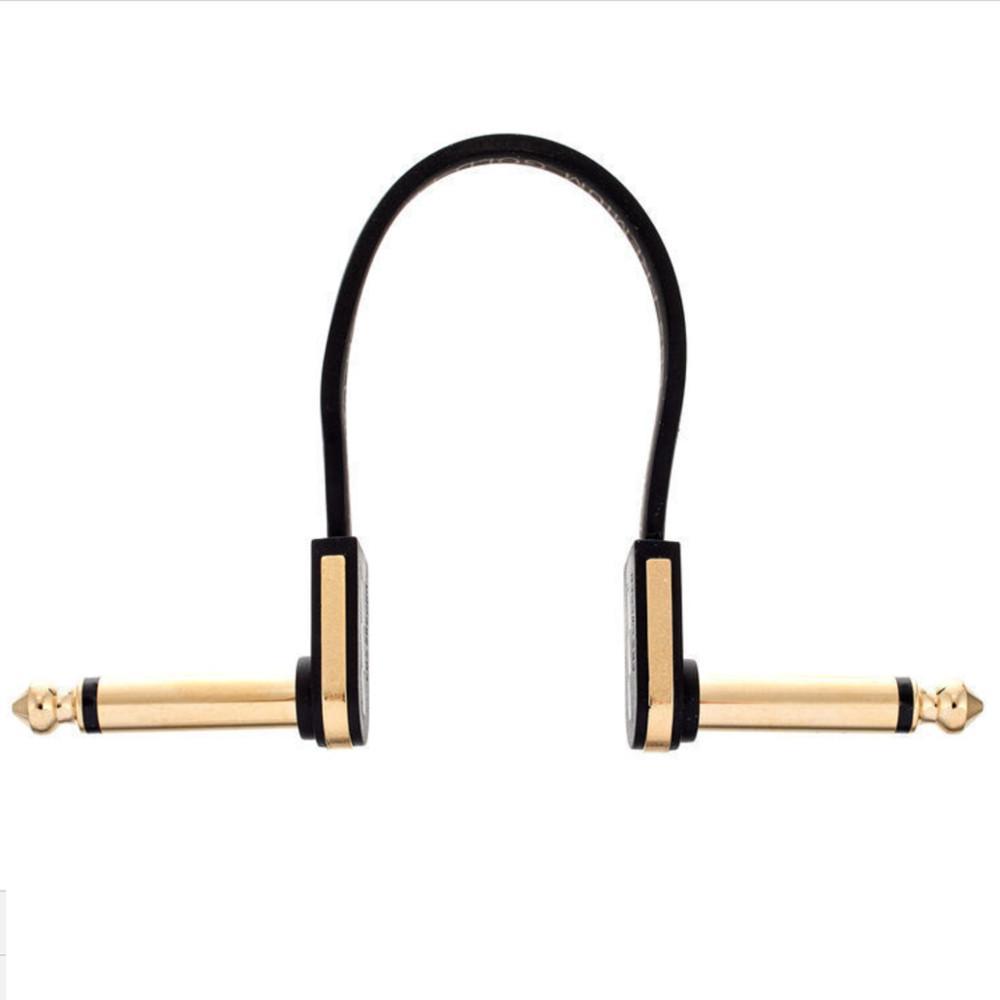

EBS PCF-PG10 10cm (3.94") Premium Gold Flat Patch Right Angle Guitar Patch Jumper Cable

Save space and money with the EBS Flat Patch Cables!

If you have ever struggled with limited space on your pedalboard, we share the pain with you.

To end the frustration we’ve designed the truly unique, super compact and affordable EBS Flat Patch Cables.  Cables that won’t let you down on sound and flexibility, and at the same time reduce the space needed between pedals to a minimum.

The elegant Premium Gold (PG) series are the most exclusive and features 24K Gold plated contacts with even smaller housing than the original EBS PCF-Deluxe (PCF-D) cables.

Since the introduction, these cables have made thousands of customers happy. We hope you will become one of them too.

Features

• Double shielded cables and very low resistance keep your signal path clean and strong all the way through the pedalboard.
• Extremely compact size and flexible cables ensure effective use of ALL space on your pedalboard.
• Available in four lengths to cover your needs; 10, 18, 28 and 58 cm.

Specifications

• Contact house: 24 Carat Gold Plated
• Double Shield: Conductive PVC and Copper shield protect effectively from both LF and HF interferences.
• Conductor: Flexible copper conductor low voltage audio signal system
• Operating Temperature: -15ºC to +70°C
• Outer Insulation: PVC (Polyvinyl Chloride)
• Signal Copper Cores: 20 x 0,12mm
• Signal Insulation:  PE (polyethylene)
• Twisted Copper shield:  45 x 0,12mm
• Capacitance Cond./Shield: < 10 pF/decimeters
• Conductor Resistance: < 10 mOhm/decimeters
• Dimensions:  5,3 x 2,5 mm (rectangular cable), 22,0 x 11,5 x 5,0 mm (contact house)
